100% Primary Copper
High-conductivity tinned copper conductors made from 100% primary copper, for low losses and lasting performance.

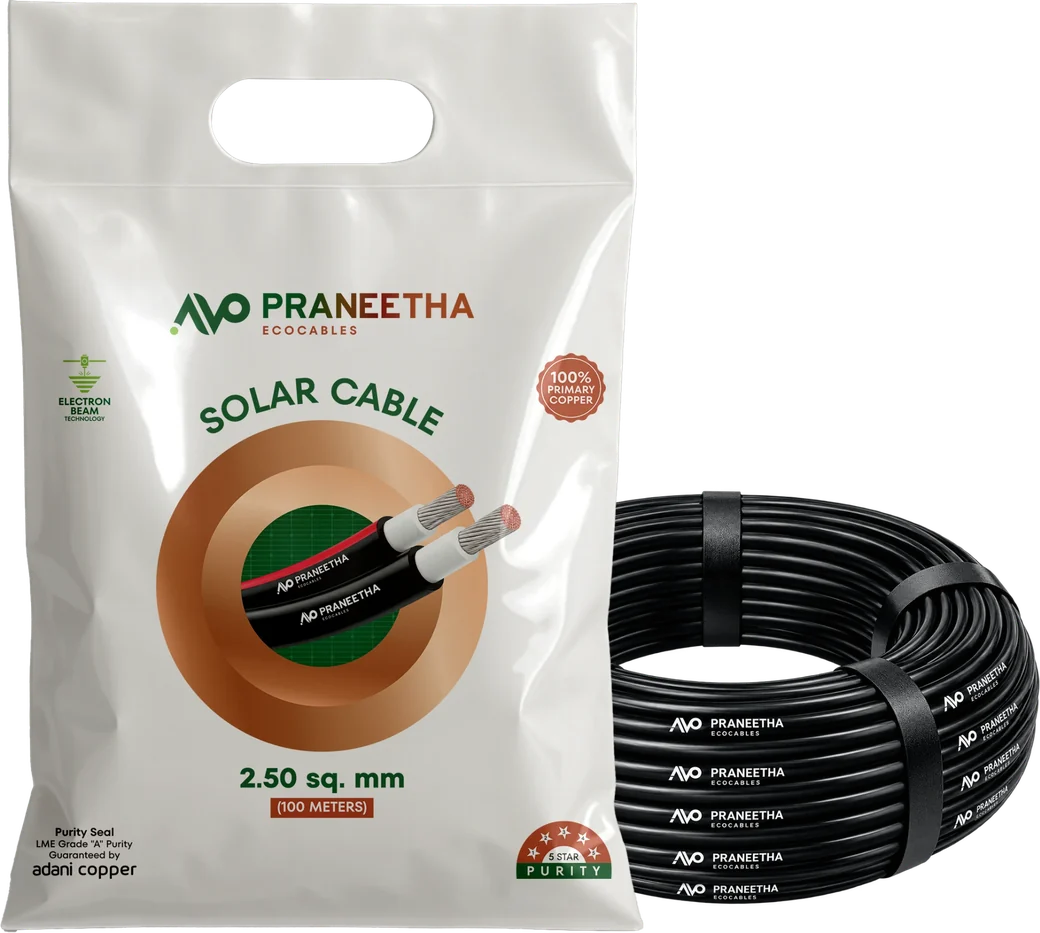

Solar Cables
Solar Cables
Solar AC & Solar DC, Earthing Cable
Purpose-engineered for photovoltaic applications, with high-conductivity tinned copper conductors and UV-stabilised insulation compounds. Built to withstand prolonged outdoor exposure, sunlight, ozone, moisture and temperature variations, ensuring stable DC power transmission across solar installations.
- Rated Voltage
- 1500 V DC
- Conductor
- Tinned Copper
- Size (Sq.mm)
- 1.5 to 50
Colours
- Black
- Black with Red Strip
Also available in custom colours
Size (Sq. mm)
- 1.5
- 2.5
- 4.0
- 6.0
- 10
- 16
- 25
- 35
- 50
Coil Form (mtr)
- 100
- 500
Drum Form (mtr)
- 1000
- 2000
- 4000
Also available in custom sizes
Proven by Standards. Trusted in Performance.
ISO9001, ISO14001, ISO45001 Certification
ISI Certification
CE Certification
RoHS Certification
REACH Certification

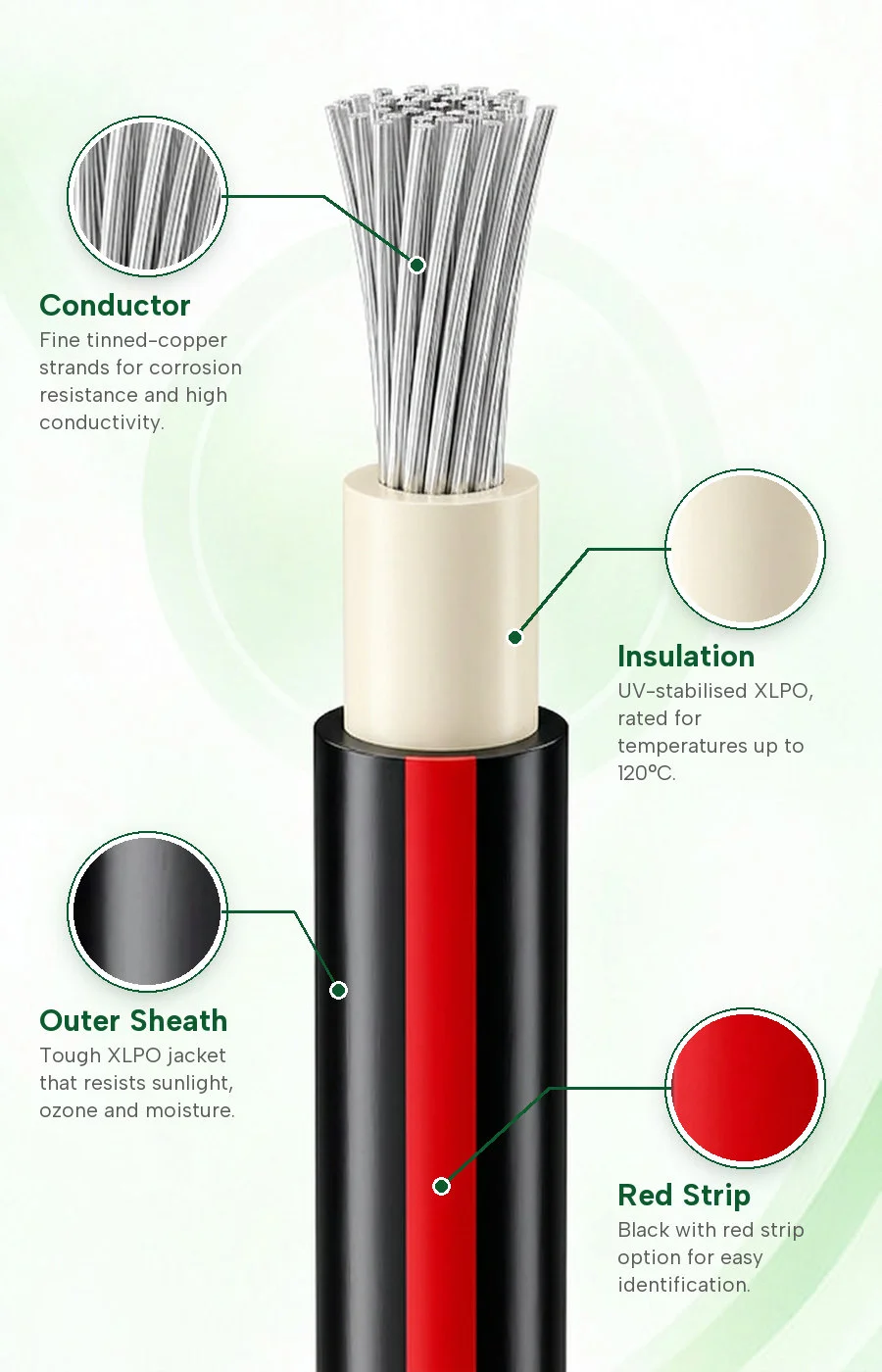

Built for Reliable Performance.
- Conductor
- High-conductivity tinned copper, made from 100% primary copper
- Insulation & Sheath
- XLPO (Cross-Linked Polyolefin), UV-stabilised
- Voltage Rating
- 1500 V DC (1.8 kV max)
- Temperature Rating
- Withstands temperatures up to 120°C
- Resistance
- Sunlight, ozone, moisture and temperature variations; anti-termite and anti-rodent
- Colours
-
- Black
- Black with Red Strip
- Standard Length of Packing
- 100 and 500 m coils; 1000, 2000 and 4000 m drums (also available in custom sizes)
- Compliance
- REACH, RoHS, CE and CPR
- Applications
- <p>Interconnection between PV modules, combiner boxes and inverters in rooftop systems, ground-mounted plants and utility-scale PV projects</p>
Precision in Every Specification.
| Nominal Cross-Sectional Area | Insulation Thickness | Outer Sheath Thickness | Mean Overall Diameter | Current Carrying Capacity by Method of Installation | Maximum Resistance of Conductor at 20°C | ||
|---|---|---|---|---|---|---|---|
| Single Cable Free in Air | Single Cable on a Surface | Two Loaded Cables Touching, on a Surface | |||||
| sq.mm | mm | mm | mm | Amp. | Amp. | Amp. | ohm / km |
| 1.50 | 0.70 | 0.80 | 5.4 | 28 | 27 | 22 | 13.7 |
| 2.50 | 0.70 | 0.80 | 5.9 | 38 | 36 | 30 | 8.21 |
| 4.00 | 0.70 | 0.80 | 6.6 | 52 | 49 | 41 | 5.09 |
| 6.00 | 0.70 | 0.80 | 7.2 | 66 | 63 | 53 | 3.39 |
| 10.0 | 0.70 | 0.80 | 8.3 | 89 | 87 | 73 | 1.95 |
| 16.0 | 0.70 | 0.90 | 9.8 | 120 | 118 | 97 | 1.24 |
| 25.0 | 0.90 | 1.00 | 12.2 | 167 | 158 | 126 | 0.795 |
| 35.0 | 0.90 | 1.10 | 14 | 207 | 196 | 156 | 0.565 |
| 50.0 | 1.00 | 1.20 | 16.3 | 261 | 248 | 190 | 0.393 |
Engineered for Everyday Confidence.
Rated 1500 V DC
Built for 1500 V DC photovoltaic systems, with a maximum of 1.8 kV.
High-Strand Flexibility Design
Fine, uniform strands make the cable easy to bend and route between modules and inverters.

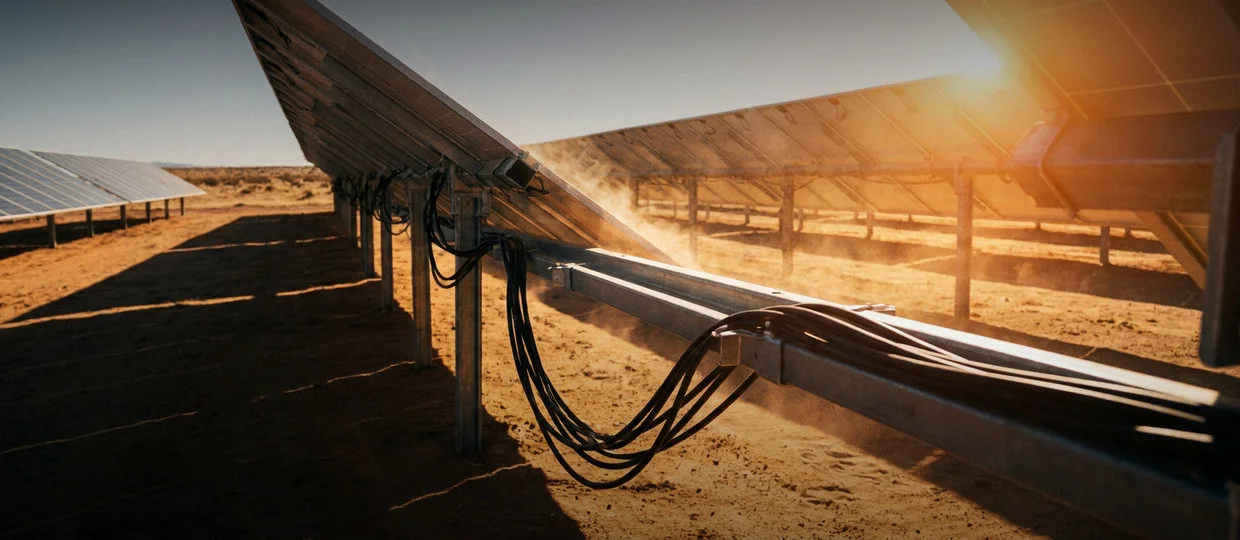

Withstands up to 120°C
Cross-linked XLPO insulation and sheath hold their properties at temperatures up to 120°C.
REACH, RoHS, CE & CPR Compliant
Made with environmentally responsible materials that meet international standards.
Anti-Termite and Anti-Rodent
A tough outer sheath protects the cable from termite and rodent damage in the field.
UV & Weather Resistant
UV-stabilised compounds resist sunlight, ozone, moisture and temperature swings outdoors.
Built for Every Solar Installation.
PV Module
Interconnection between PV modules, carrying DC power along every string.

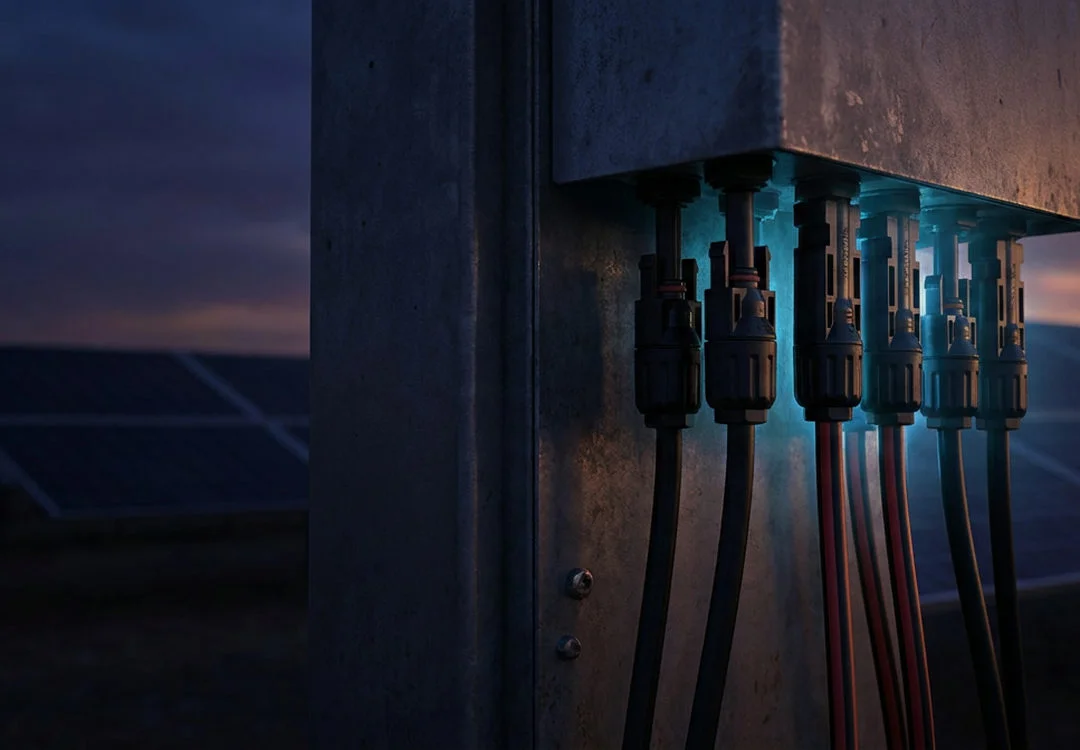

Combiner Boxes
Interconnection from the module strings into combiner boxes.
Inverters
Interconnection from combiner boxes to inverters for stable DC power transmission.

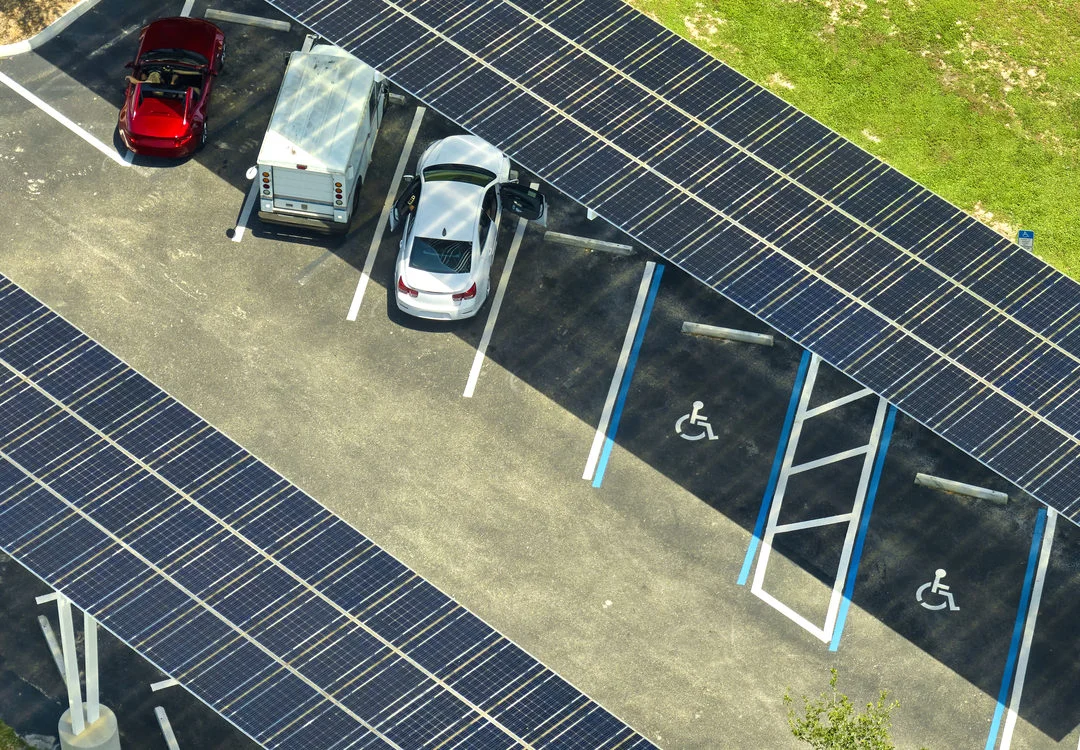

Rooftop Systems
Interconnection for rooftop solar systems on homes and commercial buildings.

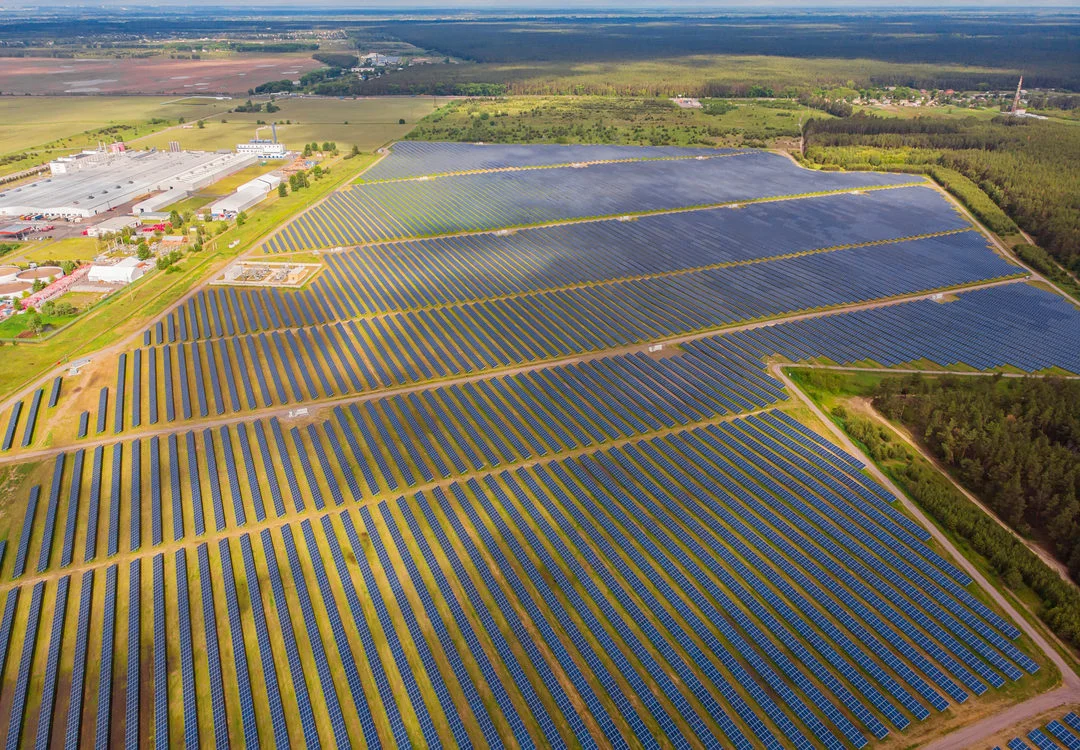

Ground-Mounted Plants
Interconnection across ground-mounted solar plants.
Utility-Scale PV Projects
Interconnection for utility-scale photovoltaic projects.
