100% Copper Conductivity
Superior electrical flow with reduced power losses and minimal heat buildup.
Ecoppure
Ecoppure
Ecoppure (HR-FR)

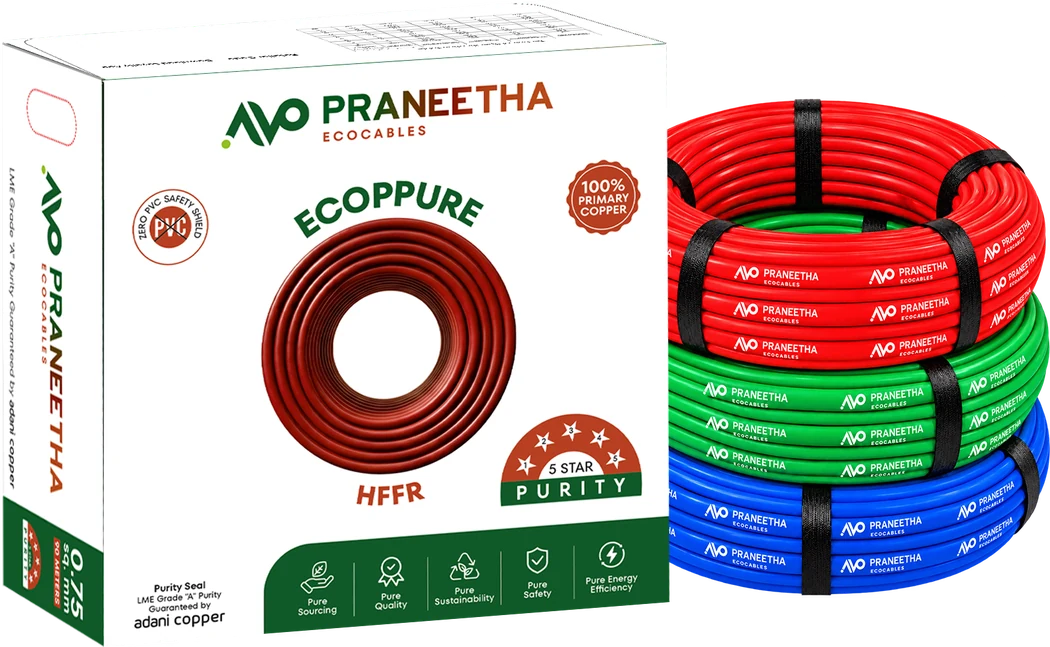

Praneetha EcoCables Limited Building Wires use 100% primary copper for superior conductivity, low resistance, and reliable current flow. Precision-engineered insulation delivers thermal endurance, safety, durability, and lasting performance across modern buildings.
- Number of Cores
- Single Core
- Voltage Grade
- 1100 V
- Size (Sq.mm)
- 0.50 to 6.00 sq. mm
Colours
- Red
- Green
- Yellow
- Blue
- Black
Size (Sq. mm)
- 0.50
- 0.75
- 1.00
- 1.50
- 2.50
- 4.00
- 6.00
Wire Length (mtr)
- 90
Proven by Standards. Trusted in Performance.
ISO9001, ISO14001, ISO45001 Certification
ISI Certification
CE Certification
RoHS Certification
REACH Certification
Built Layer by Layer for Maximum Safety.
- Approvals
- IS 17048 marked, FIA/TAC
- Conductor
- 99.98% pure electrolytic grade bright annealed bare copper
- Insulation
- FR-HR PVC ensures safe, reliable power in all weather
- Temperature Range
- -15°C to maximum +85°C
- Sheathing
- Single core insulated, no outer sheath
- Core Colours
-
- Red
- Green
- Yellow
- Blue
- Black
- Marking
- The cables are marked ‘FIREX LSOH-EBXL’
- Standard Length of Packing
- 90 meters and 180 meters coil in mono pack
Precision in Every Specification.
| Nominal Area of Copper Flexible Conductor (Sq.mm) | Conductor Construction (No./ Dia of Strands) (No./mm) | Thickness of Insulation (Nominal) (mm) | Approx. Overall Diameter (mm) | Conductor Resistance (Max) at 20°C (Ohm/Km) |
|---|---|---|---|---|
| 0.5 | 16/0.20 | 0.6 | 2.2 | 39 |
| 0.75 | 24/0.20 | 0.6 | 2.4 | 26 |
| 1 | 32/0.20 | 0.6 | 2.6 | 19.5 |
| 1.5 | 30/0.25 | 0.6 | 2.8 | 13.3 |
| 2.5 | 50/0.25 | 0.7 | 3.4 | 7.98 |
| 4 | 56/0.30 | 0.8 | 4.1 | 4.95 |
| 6 | 84/0.30 | 0.8 | 4.7 | 3.30 |
Engineered with Purpose. Built for Protection.
Energy Saving
Optimized resistance helps reduce household and building electricity bills.
High-Strand Flexibility Design
Smooth, effortless pulling through conduits without kinks or conductor damage.
Flame Retardant
Advanced insulation resists ignition and restricts flame spread in emergencies.
RoHS Compliant – Eco-friendly
Lead-free, eco-safe materials supporting healthy living environments.
Anti-Termite and Anti-Rodent
Added protective barriers guard against pest intrusion in concealed wiring.
Low Toxic Fumes
Zero halogen formulation keeps smoke clear and non-toxic for safe evacuation.
